Size of Dental Chair and Operatory Dimensions: How Much Space You Need

By the scanO editorial team. Updated September 2026.

Quick answer: The size of dental chair units when fully reclined is typically close to 1.8 meters (about 6 feet) from headrest to foot end. One manufacturer spec sheet, for example, lists 1,800 mm total length, a 450 mm cushion width and a chair height range of 500 mm to 900 mm. The complete unit is larger once you add the base, spittoon and delivery system. For the room, one US government space planning standard allocates 120 square feet of net area to a general dental treatment room. Always size your operatory from the exact model's installation drawing, then check clearance for the dentist, assistant and patient entry.

When planning an operatory, the size of a dental chair is only the starting point. Architects and dentists often start with the wrong number. The chair's reclined length matters, but the real question is whether the dentist can sit at 12 o'clock, the assistant can reach, and the patient can walk in and out safely. This guide gives you reference dimensions from a published manufacturer spec sheet, a conversion table in feet, and a worksheet for planning your own operatory.

Size of dental chair: dimensions to plan around

There is no single standard size. Dimensions vary by model, upholstery and whether the delivery system is mounted on the chair. The table below uses one published spec sheet as a reference point so you know which numbers to ask for when comparing chairs.

DimensionExample published valueWhat it means for planningReclined length (headrest to foot end)1,800 mm (Treedental TR-T1)Sets the length of the patient zone; add space behind the headrest for the 12 o'clock positionCushion length1,250 mm (Treedental TR-T1)Useful for checking tall patients and pediatric boostersCushion width450 mm maximum (Treedental TR-T1)Narrow backrests let the operator get closer from the sideChair height range500 mm to 900 mm (Treedental TR-T1)A lower minimum helps shorter operators reach elbow height seated; compare this figure across brandsBackrest recline-5 to 75 degrees (Treedental TR-T1)Confirms the chair can reach a full supine positionChair swivelNot listed; ask the dealerAffects patient entry and how the chair sits in a tight roomMaximum patient load200 kg (Treedental TR-T1)Relevant for bariatric patients and institutional buyersBase footprint and floor box positionAsk for the installation drawingDecides where water, air, drain and power must come up through the floor

Source: Treedental TR-T1 specification page, accessed September 2026. This is a reference example only; other models differ. scanO is not affiliated with any brand mentioned, and buyers should confirm current specs with the authorized dealer. For prices and brand comparisons, see our dental chair price guide.

What are dental chair dimensions in feet?

Most Indian clinic floor plans are drawn in feet, while spec sheets use millimeters. Use this conversion table (1 foot = 304.8 mm) to translate spec values.

Spec value (mm)Approximate feet and inchesWhere you see it450 mm1 ft 6 inCushion width500 mm1 ft 8 inLow chair height on some models900 mm2 ft 11 inHigh chair height on some models1,250 mm4 ft 1 inCushion length1,800 mm5 ft 11 inReclined chair length

So when someone asks for the dental chair length in feet, "about 6 feet reclined" is a fair working figure for a full-size chair, but only the chosen model's drawing is precise enough for construction.

How much space does a dental operatory need?

The chair is only one part of the room. You also need space for the operator stool behind and beside the head, the assistant on the opposite side, cabinetry, a hand-wash sink, and a clear path for the patient.

As a benchmark, the US Department of Defense space planning criteria for dental clinics allocate 120 net square feet to a general dental treatment room (DoD Space Planning Criteria, Chapter 320: Dental Clinic). That is roughly 11 square meters, for example a room of about 10 ft by 12 ft. Indian clinics often work with less, but treat any number as a starting point. The right size depends on your chair, delivery system and workflow.

India does not publish a single national minimum operatory size that applies to every private dental clinic. Some state clinical establishment rules may set requirements, so check with your local registering authority.

Plan around the clock zones, not just the chair

The dentist, assistant and instruments occupy zones around the patient's head, described as a clock face with 12 o'clock behind the head. A right-handed operator works mainly from 9 to 12 o'clock and the assistant from 2 to 4 o'clock. Our guide to dental chair positions and ergonomics explains these zones in detail. For room planning, the key checks are:

• Behind the headrest (12 o'clock): enough room to sit on your stool with knees under the backrest and still roll back.
• Operator side (9 to 11 o'clock): stool movement plus reach to the delivery unit and tray.
• Assistant side (2 to 4 o'clock): assistant stool, mobile cart or side cabinet, and suction.
• Patient entry side: a clear path from the door to the chair, including for patients using walking aids.

What changes the room size you need?

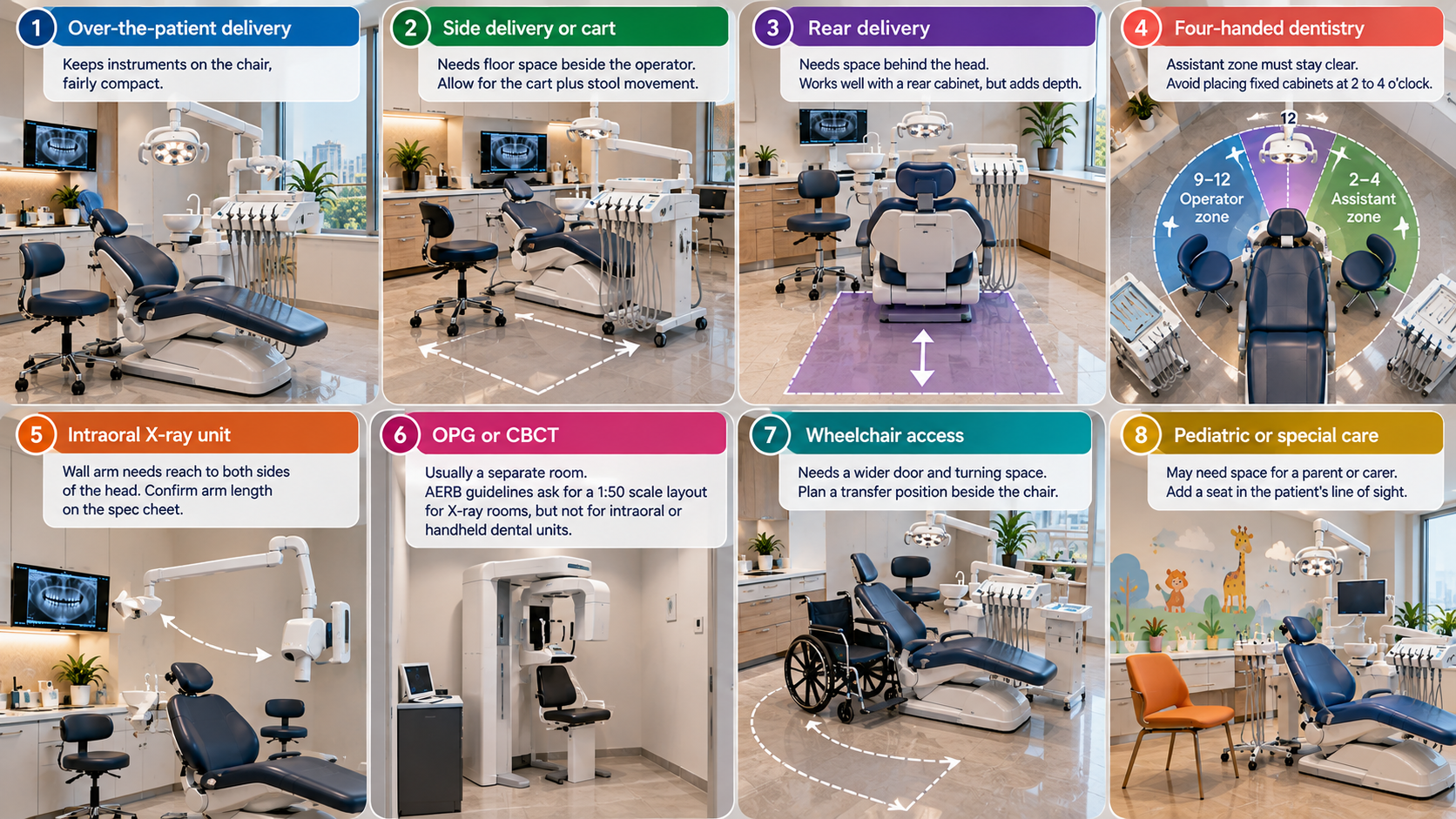

FactorEffect on spacePlanning noteOver-the-patient deliveryKeeps instruments on the chair, fairly compactCheck arm reach for left-handed use if neededSide delivery or cartNeeds floor space beside the operatorAllow for the cart plus stool movementRear deliveryNeeds space behind the headWorks well with a rear cabinet, but adds depthFour-handed dentistryAssistant zone must stay clearAvoid placing fixed cabinets at 2 to 4 o'clockIntraoral X-ray unitWall arm needs reach to both sides of the headConfirm arm length on the spec sheetOPG or CBCTUsually a separate roomAERB guidelines ask for a 1:50 scale layout for X-ray rooms, but not for intraoral or handheld dental units (AERB e-LORA guidelines)Wheelchair accessNeeds a wider door and turning spacePlan a transfer position beside the chairPediatric or special careMay need space for a parent or carerAdd a seat in the patient's line of sight

If you are planning an OPG, see our dental X-ray machine price guide for licensing steps that affect room design.

Where do you get a dental chair CAD block?

A dental chair CAD block is a 2D or 3D drawing file of the chair, usually in DWG or DXF format, that architects drop into a floor plan. Generic blocks from free CAD libraries are fine for early sketches, but they rarely match your model's real footprint, floor box position or delivery arm reach.

For construction drawings:

1. Ask the dealer for the installation drawing. Most manufacturers supply a pre-installation or planning sheet showing the chair footprint, floor box location and service entry points.
2. Request the manufacturer CAD file. Ask specifically for DWG, with a plan view and a side elevation in reclined position.
3. Check the scale. Confirm the block is drawn in millimeters at 1:1 before placing it.
4. Draw the reclined outline, not just the upright one. Plan clearances around the fully reclined chair.
5. Mark the floor box. Water inlet, air, drain and power usually come through the floor under the chair base. This decides where plumbing and conduits must run before tiling.
6. Add the stool and cart footprints. A plan with only the chair is incomplete.

Operatory sizing worksheet

Use this worksheet with your architect. Fill in values from the actual spec sheets, not generic blocks.

ItemYour value (mm or ft)SourceChair reclined lengthInstallation drawingChair width at widest point (including armrests)Installation drawingDelivery system type and reachSpec sheetClearance behind headrest for stool at 12 o'clockMeasure with your own stoolOperator side clearance (9 to 11 o'clock)Measure with stool and trayAssistant side clearance (2 to 4 o'clock)Measure with assistant stool and cartPatient entry path widthDoor and walking pathCabinetry depth along wallsCarpenter drawingSink and hand-wash positionPlumbing planIntraoral X-ray arm reachSpec sheetFloor box position from wallsInstallation drawingTotal room length x widthSum of the above

A quick test before finalizing: mark the chair outline on the floor with masking tape at full size, place the stools and cart, and do a dry run of a restorative procedure. It takes an hour and catches most mistakes.

What operatory planning mistakes should you avoid?

• Using the upright chair outline. The reclined chair is much longer. Plan for the reclined position.
• Placing a wall cabinet directly behind the headrest. It blocks the 12 o'clock position.
• Ignoring the floor box. Tiling first and then discovering the drain position is in the wrong place is expensive.
• Squeezing the assistant zone. A cabinet in the 2 to 4 o'clock area makes four-handed dentistry difficult.
• Forgetting door swing. An inward-opening door can clash with the chair or cart.
• Relying on a generic CAD block. Always swap in the manufacturer block before construction.

Example scenario: fitting one chair into a 10 ft by 12 ft room

This is a hypothetical example for illustration, not a real clinic.

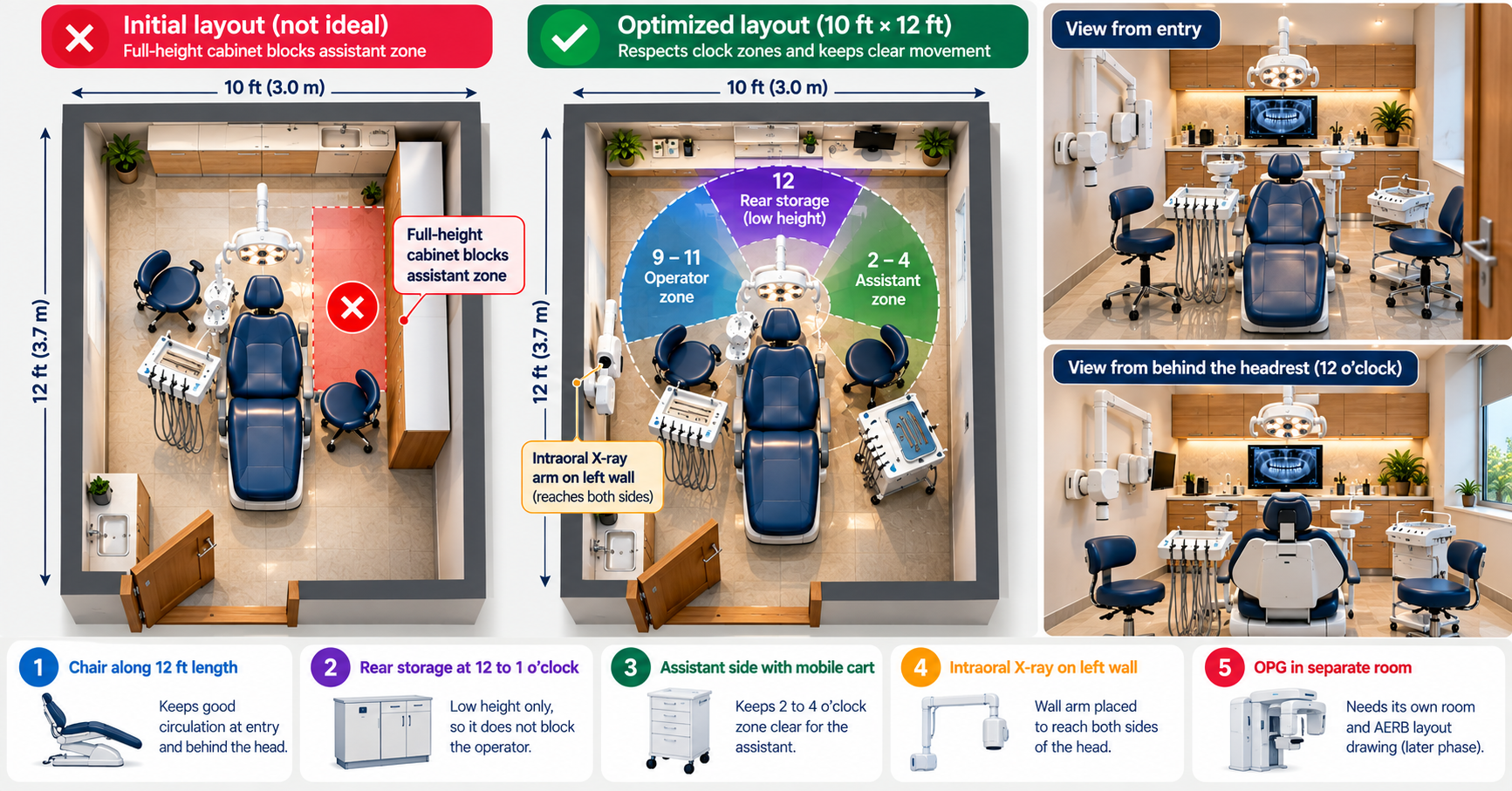

A dentist in a metro city is converting a residential flat into a single-chair clinic. The operatory room is about 10 ft by 12 ft (around 120 sq ft). The architect places the chair along the 12 ft length, with the headrest end about a stool's width plus rolling space away from the rear wall.

The first draft puts a full-height cabinet on the right side, exactly where the assistant would sit. After a taped floor mock-up, the team moves storage to the rear wall at 12 to 1 o'clock (low height only, so it does not block the operator), uses a mobile cart for the assistant, and places the intraoral X-ray arm on the left wall so it reaches both sides. The OPG is left for a later phase in a separate room, which will need its own AERB layout drawing.

The result is a workable operatory without changing the room size, simply by respecting the clock zones.

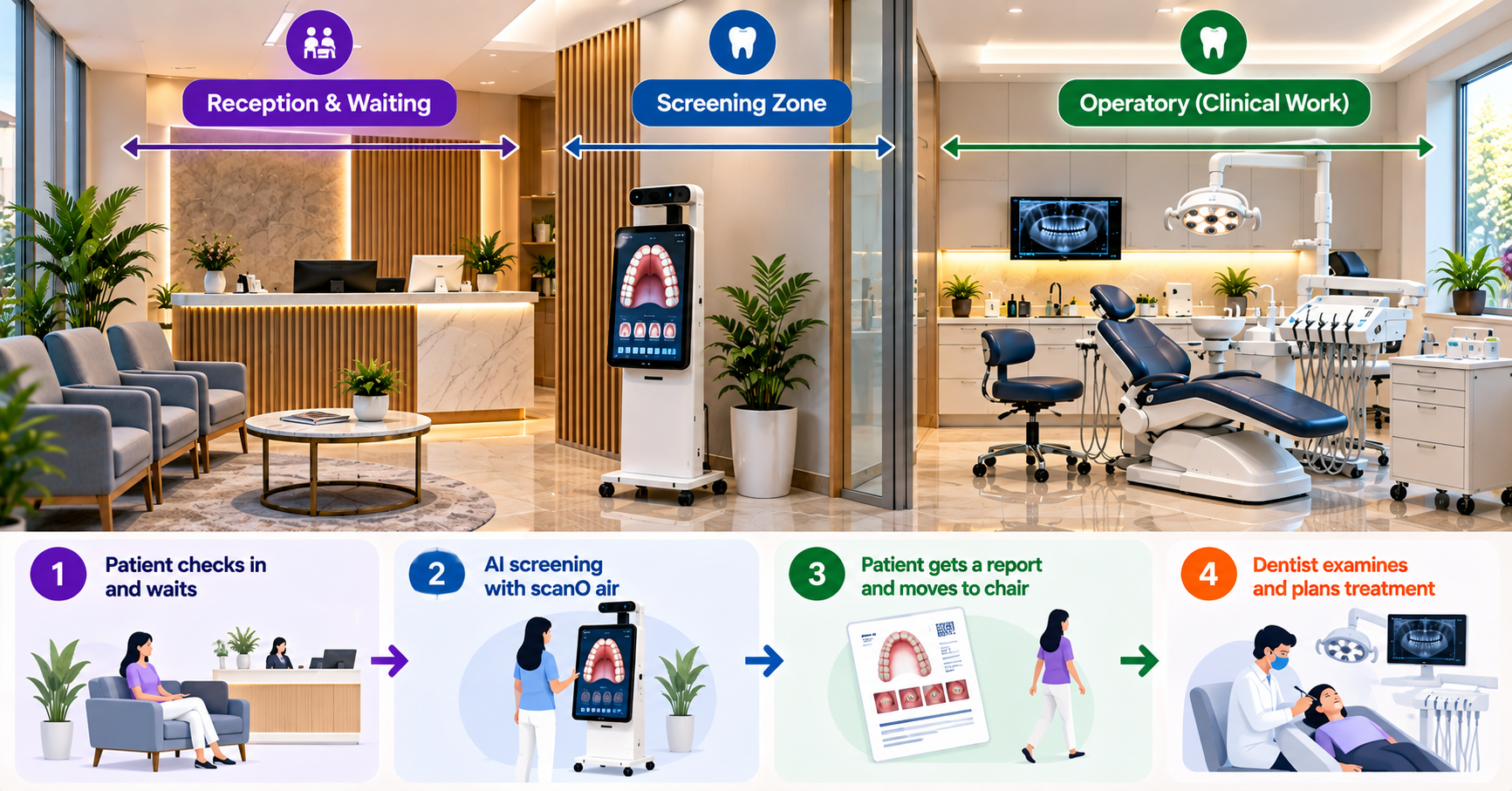

Where do screening devices fit in the clinic layout?

Not everything that supports patient assessment belongs in the operatory. AI screening devices are usually placed where patients wait, so the operatory stays free for clinical work.

Reception planning matters too, especially if screening happens before the operatory. If you add scanO air, plan standing room for it in or near reception, because it captures intraoral images and produces the patient report before the patient reaches the chair. It does not replace a clinical examination, diagnosis, radiographs, or treatment planning, which remain the dentist's responsibility.

Screening supports patient communication. Diagnosis and treatment decisions stay with the dentist, and screening data should be collected with consent and handled in line with India's Digital Personal Data Protection Act, 2023. For wider layout decisions such as reception, waiting and sterilization zones, see our dental clinic interior design guide.

Frequently asked questions

What is the length of a dental chair?

A full-size dental chair is typically close to 1.8 meters (about 6 feet) long when fully reclined. For example, one manufacturer lists 1,800 mm total length. Always confirm with the installation drawing for your exact model.

What are dental chair dimensions in feet?

Using one published spec sheet as a reference, a dental chair is about 5 ft 11 in long reclined, with a cushion about 1 ft 6 in wide and a chair height range of roughly 1 ft 8 in to 2 ft 11 in. Other models differ, so check the spec sheet.

How big should a dental operatory be?

There is no single rule for every clinic. One US government space planning standard allocates 120 net square feet to a general dental treatment room, which is about 10 ft by 12 ft. Size your room from your chair's drawing and the clearances needed for the dentist, assistant and patient.

Where can I get a dental chair CAD block?

Ask the authorized dealer or manufacturer for the model's installation drawing and DWG file. Generic CAD library blocks are fine for early sketches but may not match the real footprint or floor box position.

Does an OPG need a separate room in India?

OPG and CBCT units are usually installed in a separate room. AERB's e-LORA guidelines ask for a 1:50 scale room layout for X-ray installations, while intraoral and handheld dental units are exempt from that layout requirement. Confirm current requirements on the AERB portal.

Can a screening device go inside the operatory?

It can, but most clinics place self-service screening devices at reception so the operatory stays free for treatment. Plan floor space and a patient standing area in the waiting zone instead.

Planning the whole clinic, not just one room? Read our dental clinic interior design guide for reception, waiting and sterilization zones, and explore how a self-service screening station like scanO air fits into a modern reception layout.
